1855.0108 | Marquardt

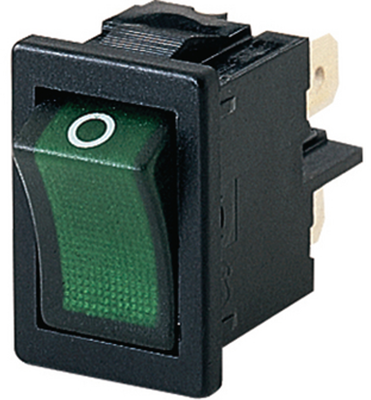

Rocker switch, green, 2 pole, On-Off, off switch, 4 (1) A/250 VAC, IP40, illuminated, printed, 1855.0108
Rocker switches, break action, illuminated oder not illuminated series 1855, type Marquardt 1855.
Double-pole, black, rocker with white legend; Breaking capacity: 4.0 (1.0) A/250 VAC. Contact resistance (new condition): <100 mohm (1,0 A/12 VDC). Insulation resistance (new condition): >100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Termination type: 4.8 x 0.8 mm tab terminals oder solder terminals. Contact pitch: > 3.0 mm. Rocker and housing material: PA. Contacts: Ag. Terminals: silver-plated. Inflammability: UL 94 V-2. For snap-on mounting on panels with thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (termination side up to +85 °C). Test logo: ENEC, UL, CSA.
Technical attributes (type, connection type, illumination, rocker color): 1855.0108, solder terminals, green
| Connection | solder connection | |
| Design | rectangular | |
| Printed | Yes | |
| illuminated | Yes | |
| Actuator colour | green | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 19.2 x 12.9 mm | |
| Pin number | 2 pole | |
| Latching switching function | off switch | |
| Breaking capacity | 4 (1) A/250 VAC | |
| Shift position | On-Off | |
| Protection class | IP40 | |
| Wall thickness | 0.75 to 3 mm |
| Country of origin | TN |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
