1855.1104 | Marquardt

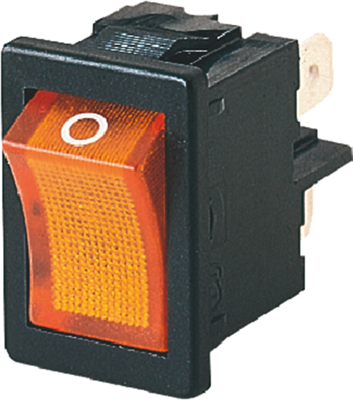

Rocker switch, orange, 2 pole, On-Off, off switch, 4 (1) A/250 VAC, IP40, illuminated, printed, 1855.1104
Rocker switches, break action, illuminated oder not illuminated series 1855, type Marquardt 1855.
Double-pole, black, rocker with white legend; Breaking capacity: 4.0 (1.0) A/250 VAC. Contact resistance (new condition): <100 mohm (1,0 A/12 VDC). Insulation resistance (new condition): >100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Termination type: 4.8 x 0.8 mm tab terminals oder solder terminals. Contact pitch: > 3.0 mm. Rocker and housing material: PA. Contacts: Ag. Terminals: silver-plated. Inflammability: UL 94 V-2. For snap-on mounting on panels with thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (termination side up to +85 °C). Test logo: ENEC, UL, CSA.
Technical attributes (type, connection type, illumination, rocker color): 1855.1104, 4.8 x 0.8 mm tab terminals, orange
| Anschluss | Steckanschluss | |
| Bauform | rechteckig | |
| Bedruckt | Yes | |
| beleuchtet | Yes | |
| Farbe Betätiger | orange | |
| Kontaktoberfläche | versilbert | |

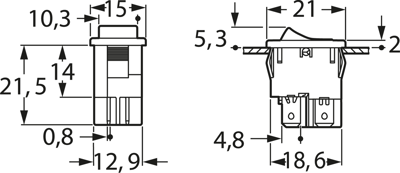

| min. Geräteausschnitt | 19,2 x 12,9 mm | |
| Polzahl | 2-polig | |
| Schaltfunktion | Ausschalter | |
| Schaltleistung | 4 (1) A/250 VAC | |
| Schaltstellung | Ein-Aus | |
| Schutzart (Betätigungsseite) | IP40 | |
| Wandstärke | 0,75 bis 3 mm |
| Ursprungsland | TN |
| Zolltarifnummer | 85365080 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
