1921.1102 | Marquardt

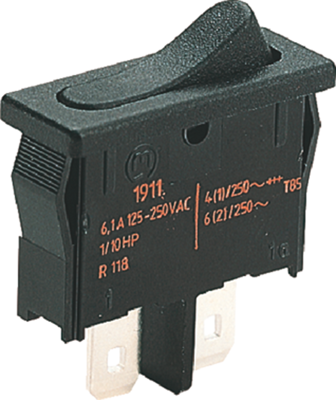

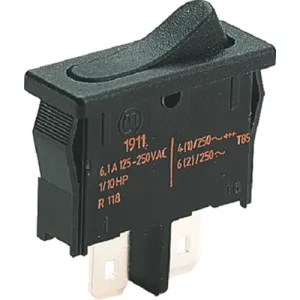

Rocker switch, break action, series 1900, type Marquardt 1921.

Single-pole, black, rocker without label (I and O); Breaking capacity: 6.0 (2.0) A/250 VAC 1E4, 4.0 (1.0) A/250 VAC 5E4. Contact resistance (new condition): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): > 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40, suitable for devices of safety class II. Connection type: 4.8 x 0.8 mm tab terminals. Contact pitch: > 3.0 mm. Switching force: 2.0 to 5.0 N. Rocker and housing material: PA. Contacts: silver. Connections: silver-plated. Inflammability: UL 94 V-2. For snap-on mounting on panels with thickness from 0.75 to 3.0 mm. Ambient temperatures: - 20 to +55 °C (connecting side to +85 °C). Test logos: ENEC, UL, CSA.

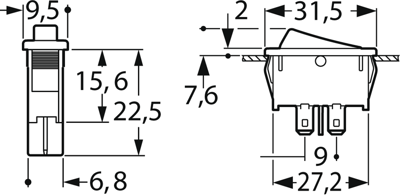

Technical attributes (type, rocker version, figure (Fig.)): 1921.1102, no legend, Fig. B
