9033.0400 | Marquardt

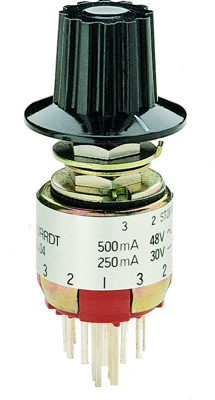

Step rotary switches, 4 pole, 3 stage, 30°, On-On-On, interrupting, 5 A, 30 V, 9033.0400
Multistep rotary switches, splashproof, series 9033, type Marquardt 9033.

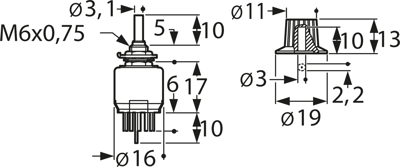

For PCB mounting, actuating side sealed with a rubber ring, terminal side sealed against ingress of flux and solder vapors. The number of switch positions can be reduced; Switching circuit: break before make. Contact rating: 0.5 A/48 VAC, 0.25 A/30 VDC. Contact resistance: < 20 mohm. Insulation resistance: > 100 Mohm (500 VDC). Dielectric strength: > 1000 VAC (60 s). Socket material: PA. Material rotary shaft, housing and mounting parts: metal. Contacts and connections: silver-plated. Bushing mount: M6 x 0.75 mm. Panel mount thickness: max. 2.0 mm. Ambient temperatures: - 25 to +85 °C. Note: The knob is not included and available on separate order.
Technical attributes (type, switch positions, number of levels, switching angle): 9033.0400, 4 x 3 contacts, 1 level, 2 x 30°
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Stufen | 3 | |
| Ausführung | Stufen-Drehschalter | |
| Nennspannung | 30 V | |
| Polzahl | 4-polig | |
| Schaltart | unterbrechend | |
| Schaltleistung | 48 VA | |
| Schaltstellung | Ein-Ein-Ein | |
| Schaltstrom | 5 A | |
| Schaltwinkel | 30 ° |
| Ursprungsland | JP |
| Zolltarifnummer | 85365015 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
