4021.0801 | Marquardt

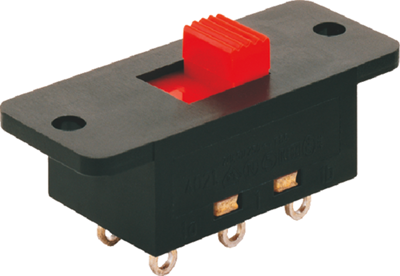

Slide switch, On-On, 2 pole, straight, 5 A/250 VAC, 4021.0801
Slide and voltage selection switches, series 4021, type Marquardt 4021.
Double-pole, CO action, with mounting flange and mounting holes. Do not actuate the voltage selection switch while on load; Breaking capacity: 2,0 (0,5) A/250 VAC 1E4 (voltage selection switch 5.0 A or 10 A). Contact resistance (new condition): <100 mohm (1,0 A/12 VDC). Insulation resistance (new condition): >100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection: IP 40. Insulation gap: to EN 61058 for reinforced or double insulation. Contact pitch: >3,0 mm. Termination type: 2.8 x 0.8 mm tab terminals. Actuator and housing material: PA. Housing color: black. Actuator color: red. Contacts: CuSn, silver-plated. Terminals: silver-plated. Inflammability: UL 94 V-2. Ambient temperatures: - 20 to +55 °C (termination side up to +80 °C).
Slide switches with mounting flange and mounting holes.
Technical attributes (type, connection type, actuator color, actuator legend): 4021.0801, 2.8 x 0.8 mm tab terminals, red, no legend
| Connection | plug-in connection | |
| Version | slide switch | |
| Design | straight | |
| Actuation | on top | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Breaking capacity | 5 A/250 VAC | |
| Shift position | On-On |
| Country of origin | DE |
| Customs tariff number | 85365080 |
| Original Packaging | Carton with 250 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
