9076.0101 | Marquardt
Slide switch, 0.4 A, -25 °C, 85 °C
As an alternative, we recommend the following item:

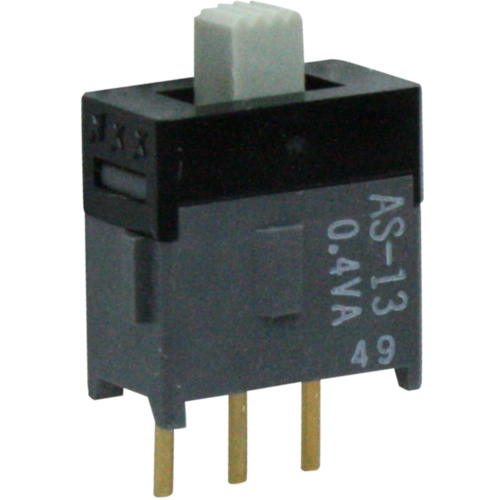

Slide switch, On-Off-On, 1 pole, straight, 0.4 VA/28 V AC/DC, AS13AP
Order No.: 11G718
Manufacturer:
per pc. 5.0218 € *
*incl. VAT plus shipping costs
Slide switches, type Marquardt 9075../9076.

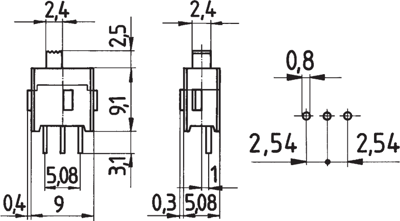

For PCB mounting. Terminal side sealed with epoxy resin to protect the contacts and to enable automated soldering; Contacts and terminals: gold-plated. Contacts and terminals: gold-plated. Slide: light-gray thermoplastic. Housing top section: black thermoplastic. Housing: gray glass fiber-reinforced thermoplastic. Slide travel: 2.5 mm. Grid: 2.54 mm. Breaking capacity: 0.4 VA. Voltage: max. 28 V. Contact resistance: max. 50 mohm. Insulation resistance: min. 500 mohm. Dielectric strength: min. 500 VAC. Ambient temperature: –25 to +85 °C.
With straight solder pins, type 9075../9076.
Technical attributes (type, number of poles; breaking action Of, making action On): 9076.0101, single-pole, ON-OFF-ON
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | on top | |
| contact surface | gold-plated | |
| Pin number | 1 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 0.4 VA/28 V AC/DC | |
| Shift position | On-Off-On |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
