9078.0101 | Marquardt
Slide switch, On-On, 1 pole, straight, 100 mA/30 V AC/DC, 9078.0101
Vom Hersteller nicht mehr lieferbar
Unit Price (€ / pc.)
5.1765 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
5.18 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1765 €
10 pcs.
4.5577 €
100 pcs.
3.9984 €
250 pcs.
3.8437 €
1000 pcs.
3.5938 €
*incl. VAT plus shipping costs
**Subject to prior sale

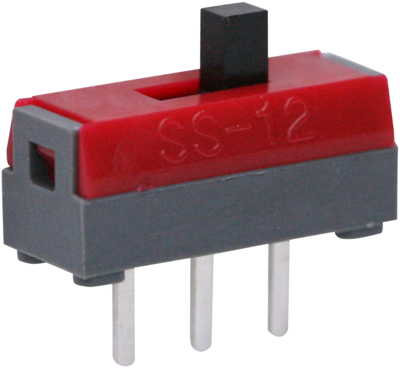

Slide switches, type Marquardt 9078.

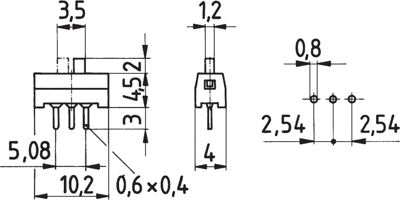

For PCB mounting; Maximum switching voltage/current: max. 30 V/100 mA. Contact resistance: max. 30 mohm. Insulation resistance: at least 100 Mohm. Dielectric strength: at least 500 VAC. Ambient temperature: –25 to +85 °C. Actuating travel: 2.0 mm. Slide: thermoplastic, black. Housing top section: thermoplastic, red. Housing: glass fiber-reinforced thermoplastic, gray. Contacts and terminals: silver-plated. Grid: 2.54 mm. Switching action: make before break.
With top slide, type 9078.
Type: 0101, single-pole
Technical specifications
| Anschluss | Leiterplattenstift | |
| Ausführung | Schiebeschalter | |
| Bauform | gerade | |
| Betätigung | oben | |
| Kontaktoberfläche | versilbert | |
| Polzahl | 1-polig | |
| Rastermaß | 2.54 mm | |
| Schaltleistung | 100 mA/30 V AC/DC | |
| Schaltstellung | Ein-Ein |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
