9078.0401 | Marquardt

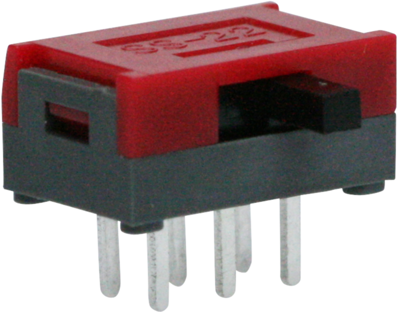

Slide switch, On-On, 2 pole, straight, 100 mA/30 V AC/DC, 9078.0401
No longer available from manufacturer
Unit Price (€ / pc.)
5.4383 € *
Available: 115 pcs.
Leadtime: On Request **
Total Price:
5.44 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4383 €
10 pcs.
4.7838 €
100 pcs.
4.1888 €
250 pcs.
4.0222 €
1000 pcs.
3.7723 €
*incl. VAT plus shipping costs
**Subject to prior sale
Slide switches, type Marquardt 9078.

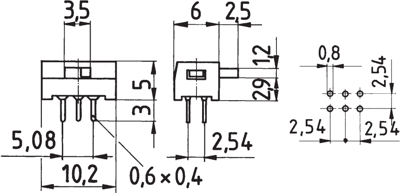

For PCB mounting; Maximum switching voltage/current: max. 30 V/100 mA. Contact resistance: max. 30 mohm. Insulation resistance: at least 100 Mohm. Dielectric strength: at least 500 VAC. Ambient temperature: –25 to +85 °C. Actuating travel: 2.0 mm. Slide: thermoplastic, black. Housing top section: thermoplastic, red. Housing: glass fiber-reinforced thermoplastic, gray. Contacts and terminals: silver-plated. Grid: 2.54 mm. Switching action: make before break.
With side slide, type 9078.
Type: 0401, double-pole
Technical specifications
| Connection | PCB pin | |
| Version | slide switch | |
| Design | straight | |
| Actuation | lateral | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Grid | 2.54 mm | |
| Breaking capacity | 100 mA/30 V AC/DC | |
| Shift position | On-On |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
