1004.1002 | Marquardt

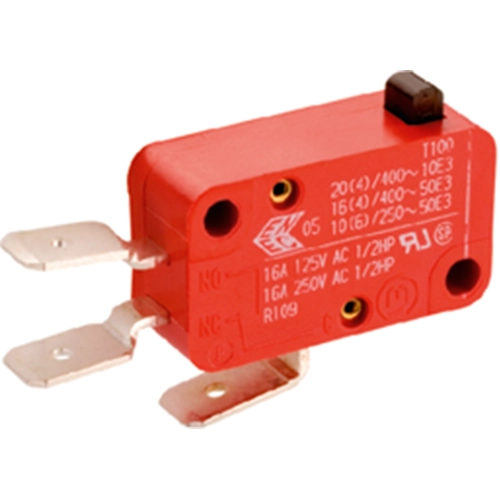

Miniature snap-action switche, On-On, plug-in connection, pin plunger, 0.2-0.6 N, 6 (2.5) A/250 VAC, 1004.1002
Miniature snap-action switches, series 1005, type Marquardt 1004.
To DIN 41635 A; Switching function: 1 x CO. Insulation resistance (new condition): min. 100 Mohm (500 VDC). Contact resistance (new condition): max. 100 mohm (1.0 A/12 VDC). Leakage current resistance: PTI 250. Suitable for safety class II devices if compliant with device-specific installation conditions. Insulation resistance: to EN 61058 with reinforced or double insulation. Contact pitch: max. 3.0 mm. Differential travel: max. 0.3 mm. Pretravel: max. 1.8 mm. Overtravel: min. 0.8 mm. Home position: max. 16 mm. Switching point: 14.7 +0.5 mm. Permitted end position: 13.4 mm. Contact material: silver. Connections: silver-plated. Ambient temperatures: –40 to +100 °C. Test logo ENEC, UL, CSA.
Breaking capacity 6.0 (2.5) A/250 VAC 5E4.
Housing material: Duroplast. Switching force: 0.2 to 0.6 N.
Technical attributes (type, connection type): 1004.1002, 6.3 x 0.8 mm tab terminals
| Connection | plug-in connection | |
| Design | angled | |
| Actuator | pin plunger | |
| actuating force | 0.2-0.6 N | |
| Shell Material | PA | |
| Latching switching function | On-On | |
| Breaking capacity | 6 (2.5) A/250 VAC | |
| Switching point | 14.7 mm ±0.5 mm |
| Country of origin | TN |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
