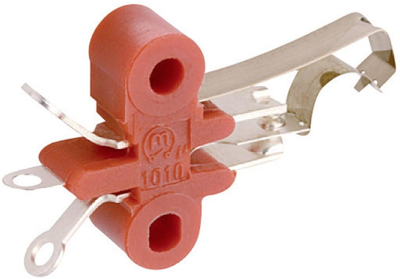

1010.0101 | Marquardt
Snap acting switche, On-On, solder connection, roller hinge lever, 0.25-0.6 N, 2 (0.5) A/250 VAC, 1010.0101
Unit Price (€ / pc.)
1.6898 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
2000 pcs.
1.6898 €
6000 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale
Snap-action switches, open, series 1010, type Marquardt 1010.
To DIN 41635 C, open design; Switching action: CO. Breaking capacity: 2,0 (0,5) A/250 VAC 20E4. Contact resistance (new condition): max. 100 mohm (1.0 A/12 VDC). Insulation resistance (new condition): min. 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Insulation gap: to EN 61058 for reinforced or double insulation. Contact pitch: less than 3.0 mm. Contact material: Ag. Terminals: silver-plated. Socket material: PA. Inflammability: UL 94 V-2. Operating temperatures: –20 to +85 °C.
With 6.5 mm solder terminals.
Differential travel: max. 0.9 mm. Pretravel: max. 3.2 mm. Overtravel: 0.7 mm.
Technical attributes (type, switch actuating force): 1010.0101, 0.25 to 0.60 N/m
Technical specifications
| Connection | solder connection | |
| Design | angled | |
| Actuator | roller hinge lever | |
| actuating force | 0.25-0.6 N | |
| Shell Material | PA | |
| Latching switching function | On-On | |
| Breaking capacity | 2 (0.5) A/250 VAC | |
| Switching point | 2.2 mm ±0.6 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365007 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
