1010.4103 | Marquardt

Name: Snap acting switche, On-On, PCB connection, roller hinge lever, 0.25-0.6 N, 2 (0.5) A/250 VAC, 1010.4103
Brand: Marquardt
SKU: 12G9977
Price: 2.15 EUR
Availability: OutOfStock

Snap acting switche, On-On, PCB connection, roller hinge lever, 0.25-0.6 N, 2 (0.5) A/250 VAC, 1010.4103

Order No.: 12G9977

EAN: 4099889212082

MPN:

1010.4103

Series: 1010

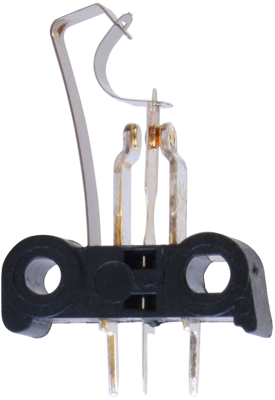

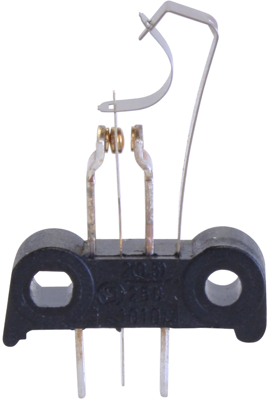

1010.4103 Marquardt Snap Action Switches Image 2

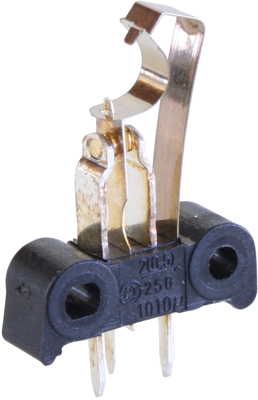

1010.4103 Marquardt Snap Action Switches Image 3

Image may differ

Key Specification:

Schaltfunktion Ein-Ein

Betätiger Rollenscharnierhebel

Betätigungskraft 0,25-0,6 N

Schaltpunkt 2,2 mm ±0,6 mm

Anschluss Leiterplattenanschluss

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.1539 € *

Available: 0 pcs.

Leadtime: 14 Weeks **

Add to Cart

Total Price:

2.15 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Technical specifications

	Anschluss	Leiterplattenanschluss
	Bauform	abgewinkelt
	Betätiger	Rollenscharnierhebel
	Betätigungskraft	0,25-0,6 N
	Gehäusematerial	PA
	Schaltfunktion	Ein-Ein
	Schaltleistung	2 (0,5) A/250 VAC
	Schaltpunkt	2,2 mm ±0,6 mm

Show similar products 0

Download

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	RO
Zolltarifnummer	85365007

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

1 item in 8 variations
