1045.6502 | Marquardt

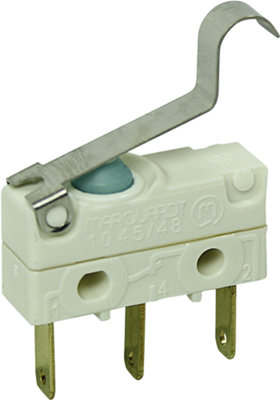

Subminiature snap-action switch, On-On, plug-in connection, roller hinge lever, 0.9 N, 6 (1) A/250 VAC, IP67, 1045.6502
Subminiature snap-action switch, series 1045 Marquardt
type: 1045.6502
with dust and water protected switching system in accordance with IP 67 with actuating lever (simulated roller) and sealed 2.8 x 0.5 mm tab terminals.
Design: DIN 41635 B.
Switching function: 1 x CO or 1 x NO, 250 VAC, 6 A.
pretravel: max. 5.3 mm.
Overtravel: 1.7 mm.
Home position: max. 20 mm
Switching position: 16.2 ±1.5 mm.
Permissible end position: 13 mm.
Contact resistance (new condition): max. 100 mohm (1,0 A/12 VDC).
Insulation resistance (new condition): min. 100 Mohm (500 VDC).
Leakage current resistance: PTI 250. Suitable for devices of safety class II.
Bounce time: max. 5.0 ms.
Degree of protection: IP 67
Housing material: PA Latamide, glass fiber-reinforced.
Auxiliary actuator material: stainless steel.
Inflammability: UL 94 V-0.
Operating temperatures: - 40 to +100 °C.
Certifications: ENEC, cULus.
| Connection | plug-in connection | |
| Design | straight | |
| Actuator | roller hinge lever | |
| actuating force | 0.9 N | |
| Shell Material | PA | |
| Latching switching function | On-On | |
| Breaking capacity | 6 (1) A/250 VAC | |
| Switching point | 16.2 mm ±1.5 mm | |
| Protection class | IP67 |
| Country of origin | DE |
| Customs tariff number | 85365007 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
