1045.7502 | Marquardt
Subminiature snap-action switch, On-On, PCB connection, roller hinge lever, 0.9 N, 6 (1) A/250 VAC, IP67, 1045.7502
Subminiature snap-action switch, series 1045 Marquardt
type: 1045.7502.1
with dust and water protected switching system in accordance with IP 67 with actuating lever (simulated roller) and sealed PCB terminals.
Design: DIN 41635 B.
Switching function: 1 x CO or 1 x NO, 250 VAC, 6 A.

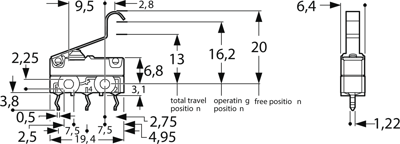

pretravel: max. 5.3 mm.
Overtravel: 1.7 mm.
Home position: max. 20 mm
Switching position: 16.2 ±1.5 mm.
Permissible end position: 13 mm.
Contact resistance (new condition): max. 100 mohm (1,0 A/12 VDC).
Insulation resistance (new condition): min. 100 Mohm (500 VDC).
Leakage current resistance: PTI 250. Suitable for devices of safety class II.
Bounce time: max. 5.0 ms.
Degree of protection: IP 67
Housing material: PA Latamide, glass fiber-reinforced.
Auxiliary actuator material: stainless steel.
Inflammability: UL 94 V-0.
Operating temperatures: - 40 to +100 °C.
Certifications: ENEC, cULus.
| Anschluss | Leiterplattenanschluss | |
| Bauform | gerade | |
| Betätiger | Rollenscharnierhebel | |
| Betätigungskraft | 0,9 N | |
| Gehäusematerial | PA | |
| Schaltfunktion | Ein-Ein | |
| Schaltleistung | 6 (1) A/250 VAC | |
| Schaltpunkt | 16,2 mm ±1,5 mm | |
| Schutzart (Betätigungsseite) | IP67 |
| Ursprungsland | DE |
| Zolltarifnummer | 85365007 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
