1050.0122 | Marquardt

Subminiature snap-action switch, Off-On, solder connection, pin plunger, 1.5 N, 6 (2) A/250 VAC, IP40, 1050.0122

Order No.: 12G982
EAN: 4099891654634
MPN:
1050.0122
Series: 1050
Marquardt

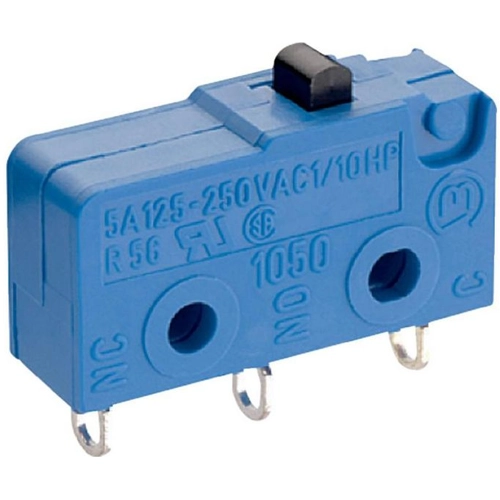

1050.0122 Marquardt Snap Action Switches
Image may differ
Print
Key Specification:
Latching switching function Off-On
Actuator pin plunger
actuating force 1.5 N
Switching point 8.4 mm ±0.3 mm
Connection solder connection
Show 23 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Add to Cart
Total Price:
2.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
2.7846 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Snap-action switch, 1050.0122, Marquardt

Features

  • Very high inrush currents (capacitive)
  • Contact distances max. 3 mm
  • Side bearing terminal
Technical specifications
Connection solder connection
Design straight
Actuator pin plunger
actuating force 1.5 N
Shell Material PBT
Latching switching function Off-On
Breaking capacity 6 (2) A/250 VAC
Switching point 8.4 mm ±0.3 mm
Protection class IP40
Show similar products 0
Logistics
Country of origin TN
Customs tariff number 85365080
Original Packaging Carton with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
