1080.0403 | Marquardt

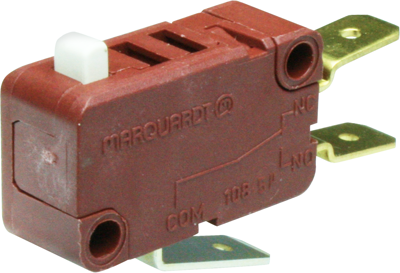

Miniature snap-action switches series 1080, type Marquardt 1080../1085.

Compliant with DIN 41635 A; Switching action: 1 x CO. Contact rating: 16 (4.0) A/250 VAC 25E3. Contact resistance (new state): < 100 mohm (1.0 A/12 VDC). Insulation resistance (new state): > 100 Mohm (500 VDC). Leakage current resistance: PTI 250. Degree of protection (actuator side): IP 40, suitable for devices of safety class II and if in compliance with device installation conditions. Insulation resistance: to EN 61058 with reinforced or double insulation. Connection type: solder terminals or 6.3 x 0.8 mm tab terminals. Contact pitch: < 3.0 mm. Differential distance: max. 0.3 mm. Pretravel: max. 2.0 mm. Overtravel: min. 1.0 mm. Housing material: PA, glass fiber-reinforced. Actuator: PETP, glass fiber-reinforced. Contacts: silver. Connections: silver-plated. Combustibility: UL 94 V-0. Ambient temperatures: –40 to +125 °C. Test logo: ENEC, UL, CSA.

Technical attributes (type, connection type): 1080.0403, 6.3 x 0.8 mm tab terminals
