190.059.023 | Marquardt

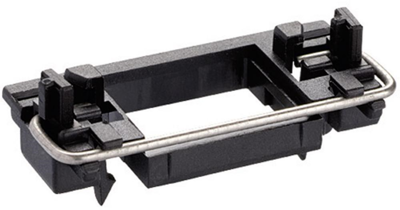

Parallel guide, rectangular, (L x W x H) 37 x 14.35 x 10.6 mm, black, for single pushbutton, 190.059.023

Order No.: 13G5382
EAN: 4099889328370
MPN:
190.059.023
Series: 6425
Marquardt
190.059.023 Marquardt Switches Accessories
Image may differ
Unit Price (€ / pc.)
3.1892 € *
Available: 101 pcs.
Leadtime: 14 Weeks **
Total Price:
3.19 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1892 €
10 pcs.
2.7965 €
100 pcs.
2.4514 €
250 pcs.
2.3681 €
1000 pcs.
2.2134 €
*incl. VAT plus shipping costs
**Subject to prior sale

Corresponding parallel guides for multiple keycaps, type 190.059.

Suitable for use with key modules with slim-line socket type 6425.1101; Versions: type 190.059.013 for dual keycaps with 16-mm pitch, type 190.059.023 for triple keycaps with 16-mm pitch and optional double or triple keycaps for 19-mm pitch.

Type: 190.059.023, for triple/16-mm pitch, double and triple/19-mm pitch

Technical specifications
Version rectangular
Width 14.35 mm
Colour black
Suitable for single pushbutton
Height 10.6 mm
Length 37 mm
Accessory Type parallel guide
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
