6450.0006 | Marquardt

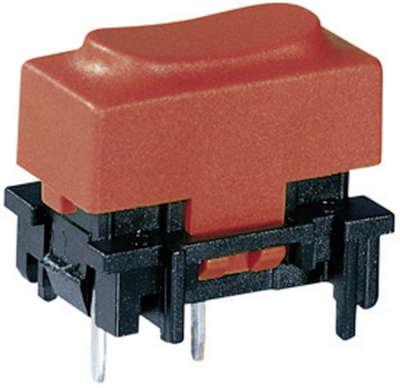

Short-stroke pushbutton, 1 Form A (N/O), 100 mA/28 V, unlit , actuator (red, L 11.5 mm), 0.7 N, THT, 6450.0006
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
100 pcs.
3.9032 €
250 pcs.
3.6890 €
1000 pcs.
3.3796 €
*incl. VAT plus shipping costs
**Subject to prior sale
Keyswitches 6450, type Marquardt 6450.
Single-pole NO contact. Colored keycaps. Agreeable actuation characteristics. Low actuation noise. Short bounce time. Long life; Switching voltage: max. 28 V. Switching current: max. 100 mA. Contact resistance (new condition): < 250 mohm. Insulation resistance (new condition): > 100 mohm. Contact pitch: < 3.0 mm. Bounce time: < 5.0 ms. Switching force: 0.7 N. Total travel/stroke: 1.6 mm. Connection type: PCB terminals. Housing material: PBTP. Keycap: PA. Contacts: silver. Connections: tin-plated. Ambient temperature: –20 to +80 °C. Frame cutout: 11 x 13.55 mm. Wall thickness: 1.2 mm.
Technical attributes (type, actuator color): 6450.0006, red
Technical specifications
| Connection | THT | |
| illuminated | No | |
| actuating force | 0.7 N | |
| Width | 10.85 mm | |
| Actuator colour | red | |
| Height | 13.2 mm | |
| Contact material | gold-plated | |
| Length | 15.5 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 100 mA/28 V | |
| actuator length | 11.5 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
