1821.1101 | Marquardt

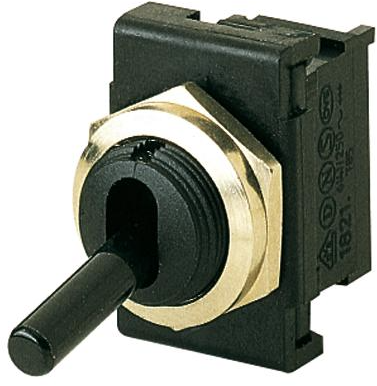

Toggle switch, black, 1 pole, latching, On-Off, 6 A/250 VAC, silver-plated, 1821.1101
Unit Price (€ / pc.)
4.1769 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
4.18 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1769 €
10 pcs.
3.6771 €
100 pcs.
3.2249 €
250 pcs.
3.1059 €
1000 pcs.
2.8917 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switches series 1820, type Marquardt 182.
Housing and toggle material: PA, black. Contacts: silver. Terminals: silver-plated. Breaking capacity: 6.0 (4.0) A/250 VAC. Insulation resistance: min. 100 Mohm on 500 VDC. Leakage current resistance: PTI 250. Ambient temperatures connection/actuation side: - 20 to +100 °C/ - 20 to +55 °C. Certifications: ENEC, UL, CSA. Push-on lever caps with color coding are described below.
Single-pole with 4.8 x 0.8 mm tab terminals, type 1821../1823../1828.
Technical attributes (type, switching functions OFF, ON, momentary on, momentary (M)): 1821.1101, ON-OFF, Fig. A
Technical specifications
| Connection | faston plug | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 6 A/250 VAC | |
| Shift position | On-Off | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
