1828.1201 | Marquardt

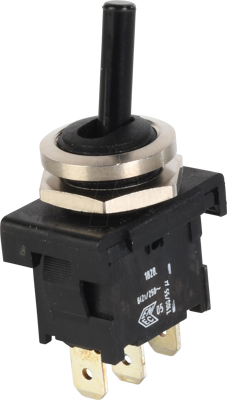

Toggle switch, black, 1 pole, latching/groping, On-Off-(On), 6 A/250 VAC, silver-plated, 1828.1201
Unit Price (€ / pc.)
6.3784 € *
Available: 0 pcs.
Next delivery: 206 pcs. on 2025-02-15
Leadtime: 14 Weeks **
Total Price:
6.38 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3784 €
10 pcs.
5.6168 €
100 pcs.
4.9266 €
250 pcs.
4.7362 €
1000 pcs.
4.4268 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switches series 1820, type Marquardt 182.
Housing and toggle material: PA, black. Contacts: silver. Terminals: silver-plated. Breaking capacity: 6.0 (2.0) A/250 VAC. Insulation resistance: min. 100 Mohm on 500 VDC. Leakage current resistance: PTI 250. Ambient temperatures connection/actuation side: - 20 to +100 °C/ - 20 to +55 °C. Certifications: ENEC, UL, CSA. Push-on lever caps with color coding are described below.
Single-pole with 4.8 x 0.8 mm tab terminals, type 1821../1823../1828.
Technical attributes (type, switching functions OFF, ON, momentary on, momentary (M)): 1828.1201, ON-OFF-M, Fig. C
Technical specifications
| Connection | faston plug | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching/groping | |
| Breaking capacity | 6 A/250 VAC | |
| Shift position | On-Off-(On) | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
