NDR-480-48 | MEAN WELL

Power supply, 48 to 55 VDC, 10 A, 480 W, NDR-480-48

Order No.: 62C1554
EAN: 4099891286156
MPN:
NDR-480-48
Series: NDR-480
MEAN WELL

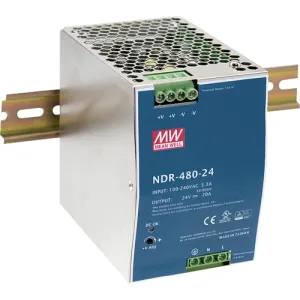

NDR-480-48 MEAN WELL DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
153.51 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
153.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
153.51 €

Power supply, NDR-480-48, MEAN WELL

NDR-480-48 is an economical, ultra-slim 480 W DIN rail power supply. The case is 85.5 mm wide, which allows space savings in cabinets. This unit is suitable for the full input range of 90 VAC to 264 VAC. With an efficiency of up to 92%, it can operate at an ambient temperature between -20°C and 70°C under air convection.

Features

  • Universal AC input/full range
  • Built-in active PFC function
  • Protection functions: Short circuit, overload, overvoltage, overtemperature
  • Cooling by free air convection
  • 100% full load burn-in test

Applications

  • Industrial control system
  • Factory automation
  • Electro-mechanical device
Technical specifications
Number of outputs 1
Output voltage DC 48 to 55 VDC
Output current 10 A
Width 85.5 mm
Input voltage AC 90-264 VAC, 127-370 VDC
Height 125.2 mm
Power 480 W
Depth 128.5 mm
efficiency 92.5 %
Logistics
Country of origin CN
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
