TDR-480-24 | MEAN WELL

Power supply, 24 to 28 VDC, 20 A, 480 W, TDR-480-24

Order No.: 62C1572
EAN: 4099891286330
MPN:
TDR-480-24
Series: TDR-480

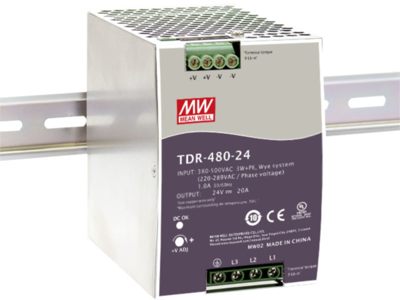

TDR-480-24 MEAN WELL DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
149.3569 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
149.36 € *
Price list
Quantity
Price per unit*
1 pcs.
149.3569 €
3 pcs.
144.8825 €
10 pcs.
139.8964 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power supply, TDR-480-24, MEAN WELL

TDR-480-24 is an economical, slim 480 W DIN rail power supply. The case is 85.5 mm wide, which allows space savings in cabinets. This unit is suitable for the full input range of 340 VAC to 550 VAC. With an efficiency of up to 93%, it can operate at an ambient temperature between -20 °C and 70 °C under air convection.

Features

  • Built-in active PFC function
  • High efficiency 93% and lower power loss
  • Protection functions: Short circuit, overload, overvoltage, overtemperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Optional DC OK relay contact

Applications

  • Industrial control system
  • Equipment for semiconductor manufacturing
  • Factory automation
  • Electro-mechanical device
Technical specifications
Anzahl der Ausgänge 1
Ausgangsspannungsbereich 24 bis 28 VDC
Ausgangsstrom 20 A
Breite 85.5 mm
Eingangsspannungsbereich 340-550 VAC, 480-780 VDC
Höhe 125.2 mm
Leistung 480 W
Tiefe 128.5 mm
Wirkungsgrad 92.5 %
Logistics
Ursprungsland CN
Zolltarifnummer 85043180
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
