ME-REDLAB 1208FS+ | Meilhaus

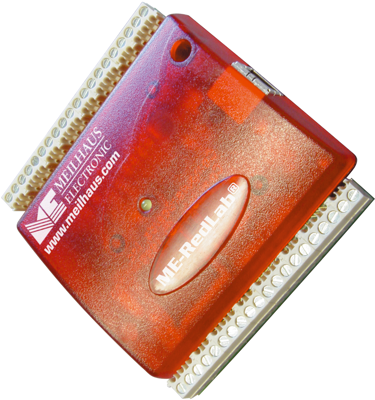

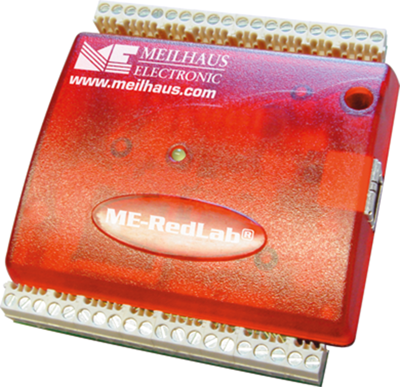

USB mini measurement laboratory, ME-REDLAB 1208FS+
Order No.: 20K264
EAN: 4099891474171
MPN:
ME-REDLAB 1208FS+
1208FS, 8 channel
As an alternative, we recommend the following item:

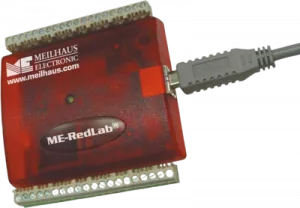

USB mini measurement laboratory, USB-1208FS-PLUS
Order No.: 20K265
Manufacturer: Meilhaus
per pc. 308.21 € *
*incl. VAT plus shipping costs
USB mini measurement labs, type Meilhaus RedLab 1.
32-bit event counter, screw terminals; Operating temperatures: 0 to +70 °C. Dimensions: 83 x 80 x 25 mm. Supplied with USB cable, screwdriver, software and operating instructions.
With 12-bit ADC, type RedLab 1208FS.
16 TTL/CMOS channels in 2 x 8 bit ports; ADC: 300 S/s (software), 50 kS/s (continuous). DAC: 1000 S/s (software, 1 channel), 500 S/s (2 channels continuous), 12.5 kS/s (2 channels, simultaneous update).
Type: RedLab 1208FS, USB mini measurement lab,
Technical specifications
| Analog Output Channels | 2, 8 bit | |
| Analog Input Channels | 4, 12 bit | |
| Version | USB mini measurement lab | |
| Digital-I/O | 16 | |
| Counter | 1, 32 bit |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84733020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
