1252A | Mennekes

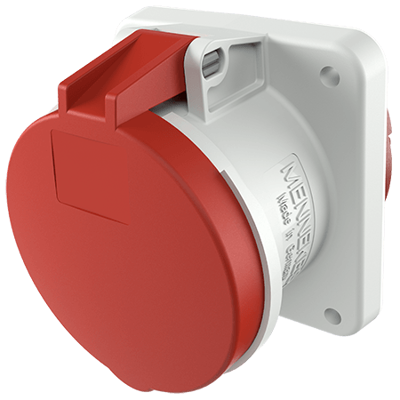

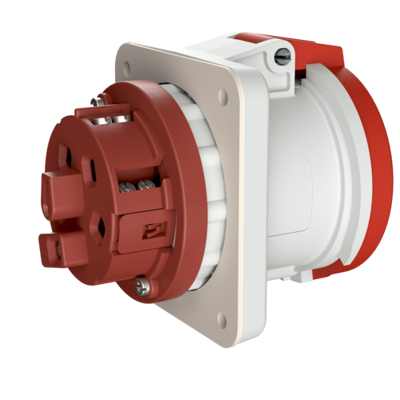

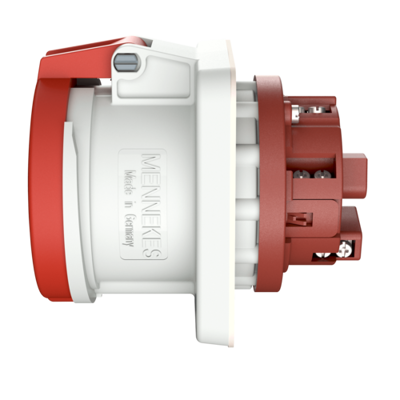

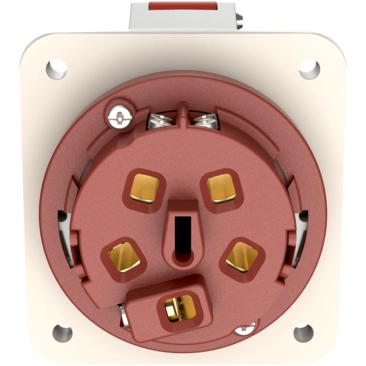

CEE surface-mounted socket, 5 pole, 63 A/400 V, gray/red, 6 h, IP44, 1252A
Order No.: 12N188
EAN: 4015394008842
MPN:
1252A
Unit Price (€ / pc.)
239.3685 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Panel mount CEE receptacles, type Mennekes 12../13../34.
Splashproof to IP 44, straight insertion, with mounting flange and hinged lid; Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 5-pole/3 P + N + E. Termination: screw terminals.
Technical attributes (type, number of poles, rated current, operating voltage (50/60 Hz), color code): 1252A, 5–pole, 63 A, 400 V, red
Technical specifications
| Connection | screw connection | |
| Version | surface-mounted socket | |
| Colour | gray/red | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 6.0-25 mm² | |
| Nominal power | 63 A/400 V | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
