13510 | Mennekes
CEE plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 13510
Unit Price (€ / pc.)
10.8171 € *
Available: 39 pcs.
Leadtime: 6 Weeks **
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
9.5200 €
50 pcs.
8.8655 €
150 pcs.
8.4847 €
500 pcs.
8.0563 €
*incl. VAT plus shipping costs
**Subject to prior sale

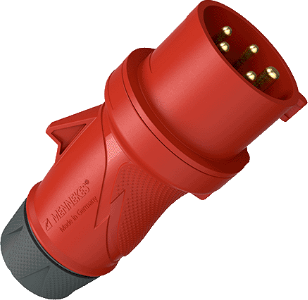

Plug PowerTOP® Xtra with ErgoCONTACT, 5-pin, red, screw connection technology ErgoCONTACT, ergonomic housing shape with nubbed grip surfaces, rubberised screw connection with sealing, strain relief and cable bend protection, housing with thread lock and locking slider, labelling area for self-adhesive labels. Rated current: 16 A, rated voltage: 400 V, frequency: 50 to 60 Hz, time setting: 6 h, protection class: IP44.
Technical specifications
| Connection | screw connection | |
| Version | plug | |
| Colour | red | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.0-2.5 mm² | |
| Nominal power | 16 A/400 V | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
