14112 | Mennekes

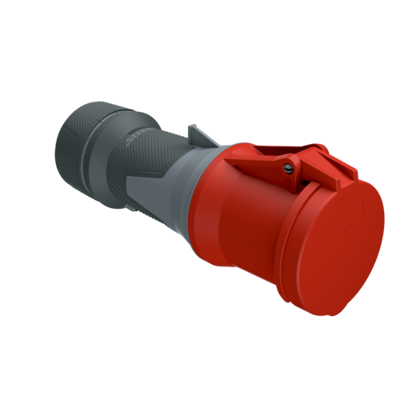

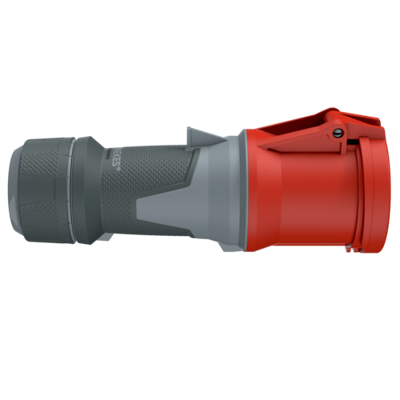

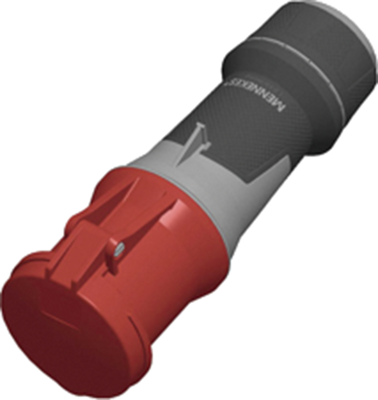

CEE jack, 5 pole, 63 A/400 V, gray/red, 6 h, IP44, 14112
Unit Price (€ / pc.)
110.1345 € *
Available: 3 pcs.
Leadtime: 10 Weeks **
CEE plugs and jacks, type Mennekes PowerTOP Xtra.
5-pole, rubber coated grips, integrated strain relief and interlock, molded captive seals, nickel-plated pins and high-temperature resistant contact blocks, to VDE, IEC/EN 60309-2; Operating voltage: 400 V (50/60 Hz). Rated current: 63 A. Terminal cross-section: 6.0 to 16 mm².
Technical attributes (type, version. Degree of protection): 14112, jack, IP 44
Technical specifications
| Connection | screw connection | |
| Version | jack | |
| Colour | gray/red | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 6.0-16 mm² | |
| Nominal power | 63 A/400 V | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
