1632 | Mennekes

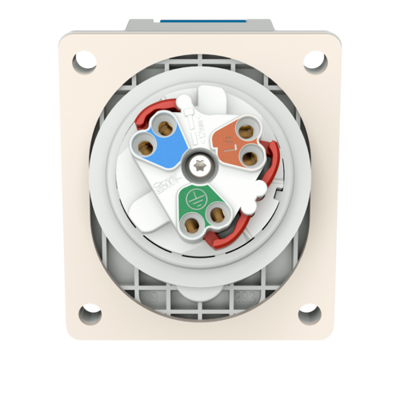

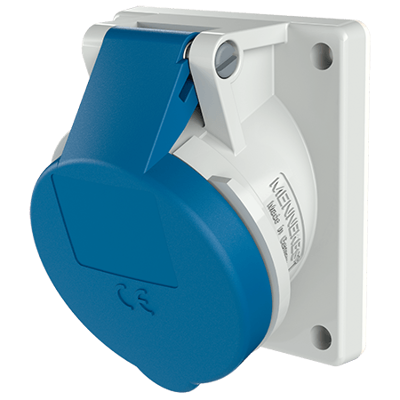

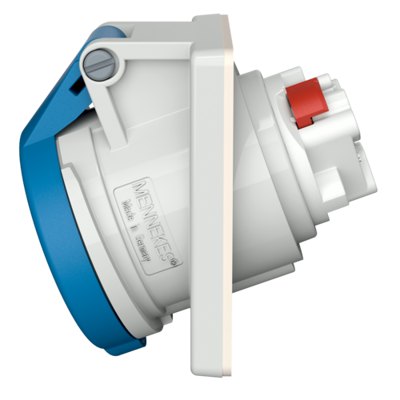

CEE surface-mounted socket, 3 pole, 16 A/230 V, blue/gray, 6 h, IP44, 1632
Order No.: 12N161
EAN: 4015394210146
MPN:
1632
Unit Price (€ / pc.)
94.9025 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
94.90 € *
Price list
Quantity
Price per unit*
1 pcs.
94.9025 €
2 pcs.
92.0465 €
5 pcs.
87.4412 €
10 pcs.
81.3246 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel mount CEE receptacles, type Mennekes 16../17../34.
Splashproof to IP 44, angled insertion, with mounting flange and hinged lid; Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high-strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 5-pole/3 P + N + E. Connection: screw-less spring clamp technology, suitable for through wiring.
Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code): 1632, 16 A, 3–pole, 230 V, blue
Technical specifications
| Connection | spring-clamp connection | |
| Version | surface-mounted socket | |
| Colour | blue/gray | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.5-4.0 mm² | |
| Nominal power | 16 A/230 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
