1720 | Mennekes

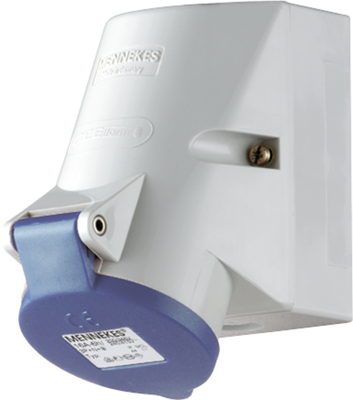

CEE wall socket, 3 pole, 16 A/230 V, blue, 6 h, IP44, 1720
Order No.: 12N235
EAN: 4015394210245
MPN:
1720
Unit Price (€ / pc.)
111.3364 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Wall mount CEE receptacles with TwinCONTACT, type Mennekes 1720/3331.
Splashproof to IP 44, screwless spring clamp technology, fastening from the inside; Cable entries: one M 20 entry on top and one dummy plug (for cutting out) on the bottom. The housing can be rotated by 180°. Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 5-pole/3 P + N + E.
Technical attributes (type, number of poles, operating voltage (50/60 Hz), rated current, color code): 1720, 3–pole, 230 V, 16 A, blue
Technical specifications
| Connection | spring-clamp connection | |
| Version | wall socket | |
| Colour | blue | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.5-4.0 mm² | |
| Nominal power | 16 A/230 V | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
