342 | Mennekes

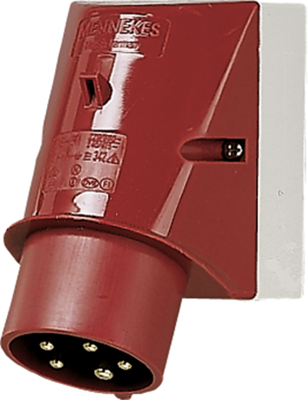

CEE wall plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 342

Order No.: 12N670
EAN: 4015394002468
MPN:
342
Mennekes
342 Mennekes CEE Connectors
Image may differ
Unit Price (€ / pc.)
106.4812 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
106.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
106.4812 €

Wall mount CEE inlets, type Mennekes 332/342/354.

Splashproof to IP 44, with mounting flange; Cable entries: 16 A version with one M 20 entry on top and one dummy plug on the bottom (for cutting out), 32 A version with one M 32 on top and two M 25 dummy plugs on the bottom (for cutting out). Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 5-pole/3 P + N + E.

Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code): 342, 16 A, 5–pole, 400 V, red

Technical specifications
Connection screw connection
Version wall plug
Colour red
Frequency range 50 to 60 Hz
Cable cross-section 1.0-2.5 mm²
Nominal power 16 A/400 V
Pin number 5 pole
Degree of protection (IP) IP44
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
