354 | Mennekes

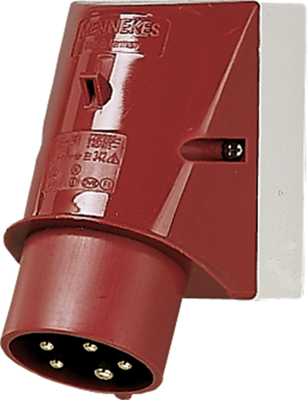

CEE wall plug, 5 pole, 32 A/400 V, red, 6 h, IP44, 354
Order No.: 12N685
EAN: 4015394002567
MPN:
354
Unit Price (€ / pc.)
135.66 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Wall mount CEE inlets, type Mennekes 332/342/354.
Splashproof to IP 44, with mounting flange; Cable entries: 16 A version with one M 20 entry on top and one dummy plug on the bottom (for cutting out), 32 A version with one M 32 on top and two M 25 dummy plugs on the bottom (for cutting out). Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 3-pole/2 P + E, 5-pole/3 P + N + E.
Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code): 354, 32 A, 5–pole, 400 V, red
Technical specifications
| Connection | screw connection | |
| Version | wall plug | |
| Colour | red | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 2.5-6.0 mm² | |
| Nominal power | 32 A/400 V | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
