419 | Mennekes

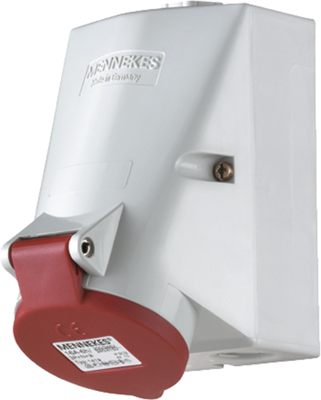

CEE wall socket, 5 pole, 16 A/400 V, gray/red, 6 h, IP44, 419
Order No.: 12N306
EAN: 4015394206125
MPN:
419
Unit Price (€ / pc.)
221.2567 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Wall mount CEE receptacles with TwinCONTACT, type Mennekes 419.
Splashproof to IP 44, screwless cage clamp technology, bottom section of the shell can be pivoted by 180°; Operating voltage: 400 V (color code red). Cable entry on top: 1 x M 25. Cable entry on the bottom: 2 x M 25 dummy (for cutting out). Contacts (number of poles/contact type): 5-pole/3 P + N + E to EN 60309.
Technical attributes (type, rated current, conductor cross-section): 419, 16 A, 1.5 to 4.0 mm²
Technical specifications
| Connection | spring-clamp connection | |
| Version | wall socket | |
| Colour | gray/red | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.5-4.0 mm² | |
| Nominal power | 16 A/400 V | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
