801 | Mennekes

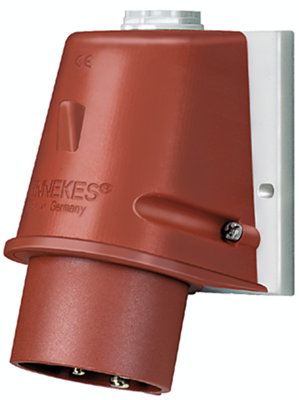

CEE wall plug, 5 pole, 16 A/400 V, red, 6 h, IP44, 801
Order No.: 12N655
EAN: 4015394202417
MPN:
801
Unit Price (€ / pc.)
35.3073 € *
Available: 5 pcs.
Leadtime: 3 Weeks **
Total Price:
35.31 € *
Price list
Quantity
Price per unit*
1 pcs.
35.3073 €
10 pcs.
32.8321 €
25 pcs.
30.2022 €
50 pcs.
27.7865 €
*incl. VAT plus shipping costs
**Subject to prior sale
CEE inlets, type Mennekes 8../414.
Splashproof to IP 44. Mounting from the outside. One M 20 cable entry on top; Version: to DIN VDE 0623, EN 60309-2. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 5-pole/3 P + N + E.
Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code): 801, 16 A, 5-pole, 400 V, red
Technical specifications
| Connection | Schraubanschluss | |
| Version | Wandstecker | |
| Colour | rot | |
| Frequency range | 50 bis 60 Hz | |
| Cable cross-section | 1,0-2,5 mm² | |
| Nominal power | 16 A/400 V | |
| Pin number | 5-polig | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
