853 | Mennekes

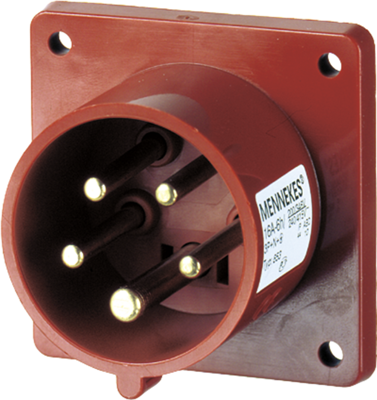

CEE surface mounted plug, 5 pole, 32 A/400 V, red, 6 h, IP44, 853
Order No.: 12N702
EAN: 4015394180623
MPN:
853
Unit Price (€ / pc.)
65.9617 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
65.96 € *
Price list
Quantity
Price per unit*
1 pcs.
65.9617 €
5 pcs.
62.6654 €
10 pcs.
58.9050 €
25 pcs.
54.7757 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel mount CEE inlets, type Mennekes 14../853.
Splashproof to IP 44, with mounting flange. A holding nose must be provided to mate the nose on the hinged lid of the jack; Version: to DIN VDE 0623, EN 60309-2. Color: electrical-gray and/or color code. Housing and insert: made of high strength plastic (AMAPLAST). Contacts (number of poles/contact type): 5-pole/3 P + N + E.
Technical attributes (type, rated current, number of poles, operating voltage (50/60 Hz), color code, mounting flange dimensions): 853, 16 A, 5–pole, 400 V, red, 75 x 75 mm
Technical specifications
| Connection | screw connection | |
| Version | surface mounted plug | |
| Colour | red | |
| Frequency range | 50 to 60 Hz | |
| Cable cross-section | 1.0-2.5 mm² | |
| Nominal power | 32 A/400 V | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
