11013 | Mennekes
Surface-mounted german schuko-style socket outlet, red, 16 A/230 V, Germany, IP54, 11013
Order No.: 05N6974
EAN: 4015394136743
MPN:
11013
As an alternative, we recommend the following item:
Surface-mounted german schuko-style socket outlet, red, 16 A/230 V, Germany, IP54, 11033
Order No.: 05N6966
Manufacturer: Mennekes
per pc. 12.3046 € *
*incl. VAT plus shipping costs

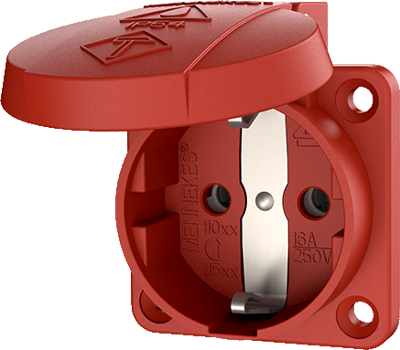

Schuko-style appliance outlets, type Mennekes 110.

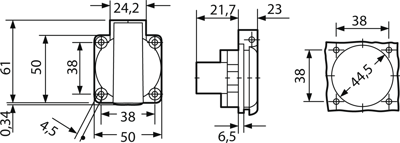

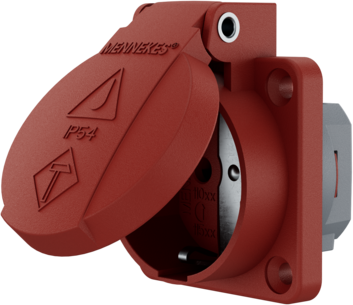

Bezel: 23 mm height, 50 x 50/61 mm, round hinged lid, compliant with DIN 49440-1, jet water-proof to IP 54. Housing: impact resistant plastic (AMAPLAST) with hammer logo. Connections: 2 P + E, 16 A/230 VAC. Connection: screw terminals 1.5 to 2.5 mm². Panel-mount diameter: 44.5 mm. Mounting depth: 21.7 mm. Mounting holes : 4, with 38 mm pitch.

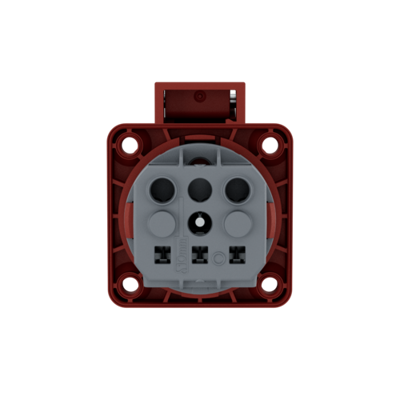

With push-in terminals, type 1101.
Type: 11013, outlet, red
Technical specifications
| Connection | clamp connection | |
| Version | Surface-mounted german schuko-style socket outlet | |
| Colour | red | |
| Hinged cover available | Yes | |
| Country code | Germany | |
| Nominal power | 16 A/230 V | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
