4307.4131 | Mentor

Pointer knob, 4 mm, plastic, black, Ø 12 mm, H 14 mm, 4307.4131

Order No.: 24H464
EAN: 4099889346695
MPN:
4307.4131
43074131
Series: 43..
4307.4131 Mentor Control Knobs Image 1
4307.4131 Mentor Control Knobs Image 2
Image may differ
Unit Price (€ / pc.)
2.3205 € *
Available: 11 pcs.
Next delivery: 50 pcs. on 2025-04-18
Leadtime: 7 Weeks **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
25 pcs.
1.9635 €
100 pcs.
1.8088 €
250 pcs.
1.7255 €
1000 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale

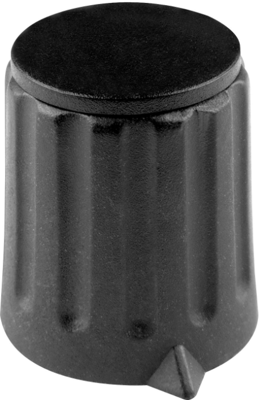

Plastic rotary knobs, type Mentor 4307../4309../4311../4312.

Dull finish, collet chuck mount and knob edge with index; Knob color: black. The cap is available on separate order. Knob variants with 12 and 15 mm diameter do not have a recess for covering the nut.

Mit Knopfdurchmesser 12 mm Typ 4307.

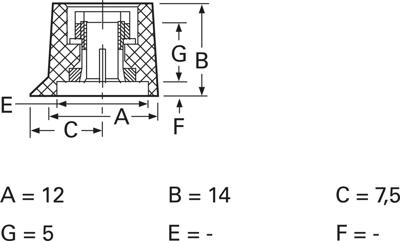

Maße: A 12,0, B 14,0, C 7,5, G 5,0 mm

Technical attributes (type, shaft diameter (OD)): 4307.4131, Ad 4,0 mm

Technical specifications
Version Zeigerknopf
For shaft diameter 4 mm
diameter 12 mm
Height 14 mm
Marking No
Type of mounting Spannzangenbefestigung
Material Kunststoff
Colour schwarz
Logistics
Country of origin TN
Customs tariff number 39269097
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
