4312.6131 | Mentor

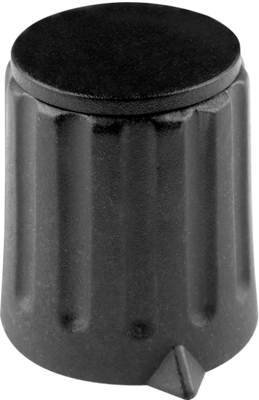

Pointer knob, 6 mm, plastic, black, Ø 28 mm, H 18.5 mm, 4312.6131
Unit Price (€ / pc.)
3.1773 € *
Available: 150 pcs.
Leadtime: 7 Weeks **
Total Price:
3.18 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1773 €
10 pcs.
2.7846 €
100 pcs.
2.4514 €
250 pcs.
2.3562 €
1000 pcs.
2.2015 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic rotary knobs, type Mentor 4307../4309../4311../4312.
Dull finish, collet chuck mount and knob edge with index; Knob color: black. The cap is available on separate order. Knob variants with 12 and 15 mm diameter do not have a recess for covering the nut.
Mit Knopfdurchmesser 28 mm Typ 4312.

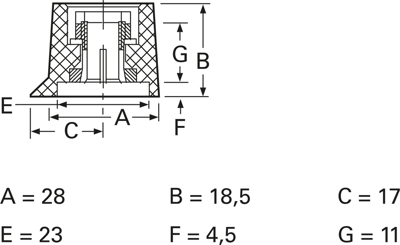

Maße: A 28,0, B 18,5, C 17,0, E 23,0, F 4,5, G 11,0 mm
Technical attributes (type, shaft diameter (OD)): 4312.6131, Ad 6,0 mm
Technical specifications
| Ausführung | Zeigerknopf | |
| Befestigungsart | Spannzangenbefestigung | |
| Durchmesser | 28 mm | |
| Farbe | schwarz | |
| Für Achsdurchmesser | 6 mm | |
| Höhe | 18.5 mm | |
| Markierung | No | |
| Material | Kunststoff |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
