1816.2137 | Mentor

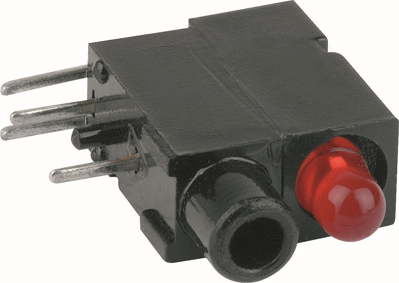

2 mm switching socket, PCB connection, mounting Ø 3.8 mm, black, 1816.2137

Order No.: 39G1684
EAN: 4099889673869
MPN:
1816.2137
18162137
Series: 1816.21
1816.2137 Mentor Laboratory Connectors

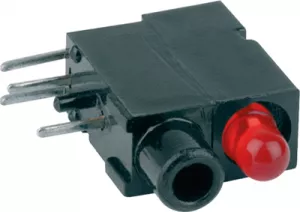

Image may differ
Unit Price (€ / pc.)
3.1416 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
157.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
3.1416 €

Switch jack ø 2 mm, 1816.2137, Mentor

This single switch jack is suitable for connectors Ø 2 mm in order to operate printed circuits. The switch jack is equipped with lateral fins and grooves, which interlock when stacking the switch jack thus guaranteeing stability on the printed circuit board in order to absorb the necessary insertion and withdrawel forces. The collar at the face of the component guarantees the mounting point in the front panel and preservation from short circuit between test terminal and front panel.

Technical specifications
Anschluss Leiterplattenanschluss
Ausführung Schaltbuchse
Bemessungsspannung 60 V
Bemessungsstrom 0.5 A
Berührungssicher No
Durchmesser 2 mm
Einbaudurchmesser 3.8 mm
Farbe schwarz
Kontaktoberfläche verzinnt
Länge 14.5 mm
Logistics
Ursprungsland TN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
