1816.2138 | Mentor

2 mm switching socket, solder connection, black, 1816.2138

Order No.: 35F3646
EAN: 4099889673784
MPN:
1816.2138
18162138
Series: 1816.21

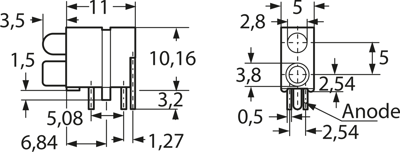

1816.2138 Mentor Laboratory Connectors Image 1

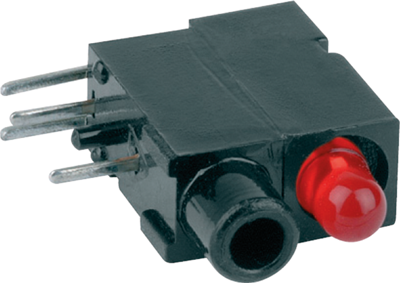

1816.2138 Mentor Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
4.0936 € *
Available: 42 pcs.
Leadtime: 7 Weeks **
Total Price:
4.09 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0936 €
10 pcs.
3.6057 €
100 pcs.
3.1773 €
250 pcs.
3.0583 €
1000 pcs.
2.8441 €
*incl. VAT plus shipping costs
**Subject to prior sale

Switch jack ø 2 mm, 1816.2138, Mentor

This single switch jack is suitable for connectors Ø 2 mm in order to operate printed circuits. The switch jack is equipped with lateral fins and grooves, which interlock when stacking the switch jack thus guaranteeing stability on the printed circuit board in order to absorb the necessary insertion and withdrawel forces. The collar at the face of the component guarantees the mounting point in the front panel and preservation from short circuit between test terminal and front panel.

Technical specifications
Anschluss Lötanschluss
Ausführung Schaltbuchse
Bemessungsspannung 60 V
Bemessungsstrom 1 A
Berührungssicher No
Durchmesser 2 mm
Farbe schwarz
Kontaktoberfläche vernickelt
Länge 11 mm
Logistics
Ursprungsland TN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
