1852.6232 | Mentor

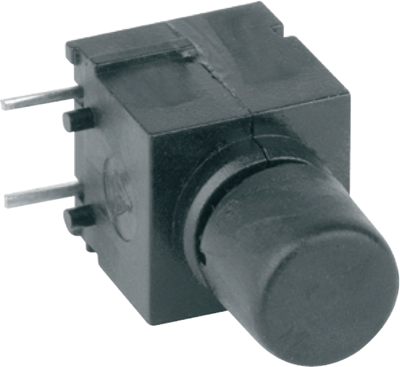

Pushbutton, 1 pole, black, unlit , 0.5 A/60 V, IP50, 1852.6232
Unit Price (€ / pc.)
3.2725 € *
Available: 0 pcs.
Next delivery: 94 pcs. on 2025-01-20
Leadtime: 7 Weeks **
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
2.8679 €
100 pcs.
2.5228 €
250 pcs.
2.4276 €
1000 pcs.
2.2729 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pushbutton switches, type Mentor 1852.
Single-pole, horizontal or vertical; Contact type: NO. Switching voltage: max. 60 V AC/DC. Switching current: max. 0.5 A. Test voltage: 500 V/50 Hz. Breaking capacity: max. 6.0 VA. No-load current: max. 1.0 A. Contact resistance: max. 50 mohm. Actuating force: max. 5.0 N. Housing material: PC, black. Connections: solder pins, tinned. Operating temperatures: –40 to +85 °C. Corresponding actuators are available on separate order.
Horizontal, type 1852.

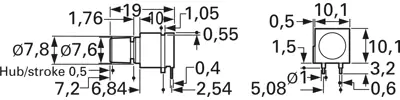

Type: 1852.6232, pushbutton switch, horizontal
Technical specifications
| Connection | solder connection | |
| Design | round | |
| Printed | No | |
| illuminated | No | |
| Actuator colour | black | |
| Pin number | 1 pole | |
| Latching switching function | groping | |
| Breaking capacity | 0.5 A/60 V | |
| Protection class | IP50 | |
| Vandal-proof | No |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
