1801.8833 | Mentor
Unit Price (€ / pc.)
2.1063 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.11 € *
Price list
Quantity
Price per unit*
50 pcs.
2.1063 €
100 pcs.
1.9516 €
250 pcs.
1.8564 €
1000 pcs.
1.6779 €
*incl. VAT plus shipping costs
**Subject to prior sale

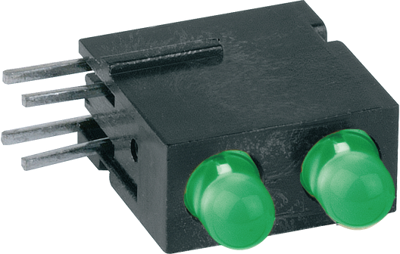

LED-Signal lamp, 1801.8833, Mentor
This component with lateral fins and grooves, which interlock when being stacked, guarantees appropriate stabilization on the printed circuit board. This component is additionally equipped with clamp thus being held on the printed circuit board and enabling soldering. Also combines technical functionality and a high variability of application technology.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der LEDs | 2 | |
| Diodendurchmesser | 3 mm | |
| Farbe der Beleuchtung | grün/grün | |
| Lichtstärke | 0.005 cd | |
| Montage | Durchgangsloch | |
| Nennspannung (DC) | 2.2 V | |
| Nennstrom | 2 mA | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85414100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
