1802.2232 | Mentor

LED scale light, 2 V (DC), red, 80 mcd, pitch 2.54 mm, LED number: 2, 1802.2232

Order No.: 31G750
EAN: 4099889581942
MPN:
1802.2232
18022232
Series: 1802.2
Mentor

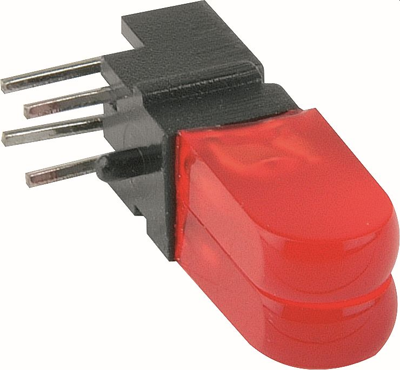

1802.2232 Mentor Signal Lamps, Indicators, Arrays Image 1
1802.2232 Mentor Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
4.0698 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
4.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
4.0698 €

LED-Signal lamp, 1802.2232, Mentor

This component consist of two-scale LED. Lateral fins and grooves, which interlock when stacking the components, guarantee stability on the printed circuit board. The scale LED can be arranged horizontally and vertically and the components can be used for two levels.

Technical specifications
Connection PCB connection
Number of LEDs 2
Farbe der Beleuchtung red
Luminous intensity 0.08 cd
Assembly through hole
Rated voltage (DC) 2 V
Rated current 20 mA
Grid 2.54 mm
Logistics
Country of origin TN
Customs tariff number 85414100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
