2665.8071 | Mentor
LED signal light, yellow, 30 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2665.8071
Unit Price (€ / pc.)
4.4268 € *
Available: 36 pcs.
Leadtime: 7 Weeks **
Total Price:
4.43 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4268 €
10 pcs.
3.8913 €
100 pcs.
3.4153 €
250 pcs.
3.2844 €
1000 pcs.
3.0702 €
*incl. VAT plus shipping costs
**Subject to prior sale

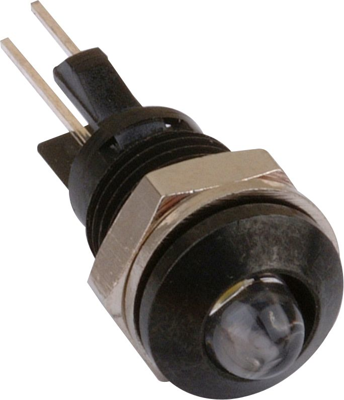

LED signal lamp, 2665.8071, Mentor

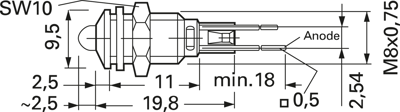

Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 8 mm. The sockets can be supplied with an external or internal reflector. The plug insert is removable. Supplied with washer and hexagonal nut.
Technical specifications
| Anschluss | Lötanschluss | |
| Anzahl der LEDs | 1 | |
| Diodendurchmesser | 5 mm | |
| Einbaudurchmesser | 8 mm | |
| Farbe der Beleuchtung | gelb | |
| Lichtstärke | 0.03 cd | |
| Montage | Zentralbefestigung | |
| Nennstrom | 20 mA | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | TN |
| Zolltarifnummer | 85414100 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
