2693.8381 | Mentor

LED signal light, 24 V (DC), green, 30 mcd, Mounting Ø 8 mm, pitch 2.54 mm, LED number: 1, 2693.8381

Order No.: 31G8676
EAN: 4099889582741
MPN:
2693.8381
26938381
Series: 2693.8
Mentor
2693.8381 Mentor Signal Lamps, Indicators, Arrays Image 1
2693.8381 Mentor Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
7.8897 € *
Available: 127 pcs.
Leadtime: 7 Weeks **
Total Price:
7.89 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8897 €
10 pcs.
6.9377 €
100 pcs.
6.0809 €
250 pcs.
5.8548 €
1000 pcs.
5.4740 €
*incl. VAT plus shipping costs
**Subject to prior sale

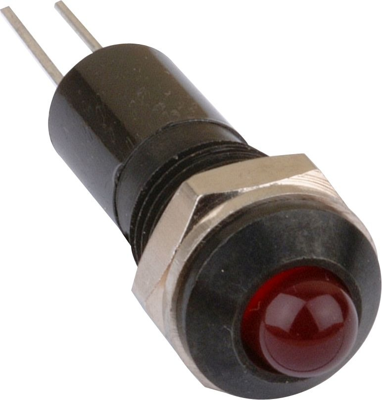

LED signal lamp, 2693.8381, Mentor

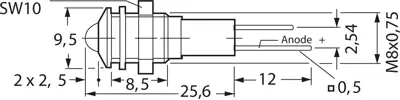

Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 8 mm. The sockets can be supplied with an external or internal reflector. The insert for the LED receptacle is pushed into the case. The signal lamp has an integrated resistor and is designed for nominal voltages of 24V. Supplied with washer and hexagonal nut.

Technical specifications
Connection solder connection
Number of LEDs 1
Diode Diameter 5 mm
Installation diameter 8 mm
Farbe der Beleuchtung green
Luminous intensity 0.03 cd
Assembly central Mounting
Rated voltage (DC) 24 V
Rated current 20 mA
Grid 2.54 mm
Logistics
Country of origin TN
Customs tariff number 85414100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
