M.3030Y | Mentor
LED signal light, yellow, 12 mcd, Mounting Ø 6 mm, pitch 2.54 mm, LED number: 1, M.3030Y
Unit Price (€ / pc.)
4.4030 € *
Available: 54 pcs.
Leadtime: 11 Weeks **
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4030 €
10 pcs.
3.8675 €
100 pcs.
3.4034 €
250 pcs.
3.2725 €
1000 pcs.
3.0583 €
*incl. VAT plus shipping costs
**Subject to prior sale

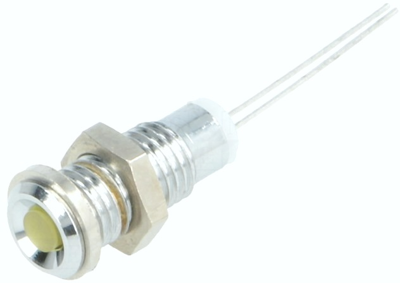

LED signal lamp, M.3030Y, Mentor
Signal lamp for front panel installation is designed for screw mounting with a recommended installation hole of ø 6 mm. The insert for the LED receptacle is pushed into the case. Supplied with washer and hexagonal nut.
Technical specifications
| Connection | solder connection | |
| Number of LEDs | 1 | |
| Diode Diameter | 3 mm | |
| Installation diameter | 6 mm | |
| Farbe der Beleuchtung | yellow | |
| Luminous intensity | 0.012 cd | |
| Assembly | central Mounting | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
