Z.2101R | Mentor
Signal light, red, 32 mcd, pitch 2.54 mm, LED number: 9, Z.2101R
Unit Price (€ / pc.)
9.2106 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

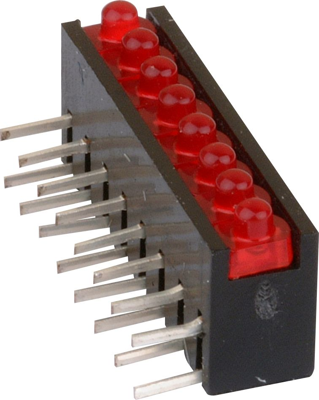

LED signal lamps, type Mentor RTZ 2041../2081../2101.

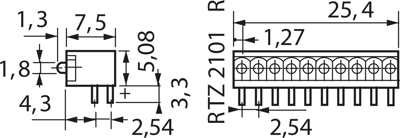

Diode diameter: 2.0 mm. Grid: 2.54 mm, horizontal, with 4, 8 or 10 LEDs. Housing material: PC, black. Connections: tinned. Operating temperatures: –40 to +85 °C.
Technical attributes (type, number of LEDs x LED color, on-state voltage (typically) at 20 mA, on-state current (max.), wavelength, luminous intensity (min./max.) at 10 mA): RTZ 2101 R, 10 x red, 2.0 V, 20 mA, 630 nm, 4.0/32 mcd
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of LEDs | 9 | |
| Diode Diameter | 2 mm | |
| Farbe der Beleuchtung | rot | |
| Luminous intensity | 0.032 cd | |
| Assembly | Durchgangsloch | |
| Rated current | 20 mA | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
