HUS-4.000-18-30/50/4085 | Mercury
Crystal, 4 MHz, 18 pF, ±30 ppm, 120 Ω, THT, HUS-4.000-18-30/50/4085
Unit Price (€ / pc.)
0.3094 € *
Available: 760 pcs.
Leadtime: 10 Weeks **

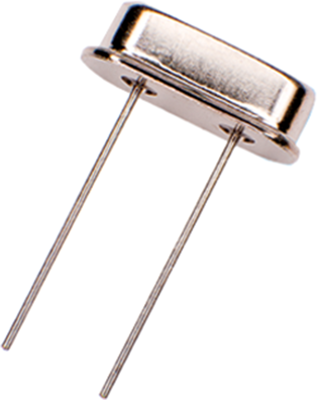

Crystals, type Mercury HUS.
Industrial standard HC49/S; frequency tolerance: ±30 ppm at +25 °C. Temperature stability: ±50 ppm. Load capacitance: 18 pF. Operating temperatures: –40 to +85 °C. Aging: max. ±3.0 ppm in year 1, ±1.0 ppm per year after that.
Technical attributes (type, rated frequency, ESR): 4.000000 MHz, 120 ohm
Technical specifications

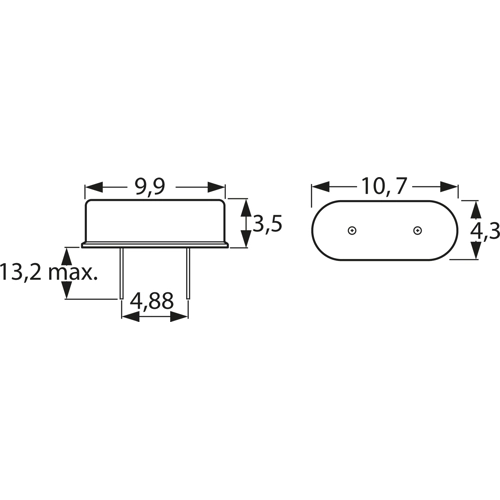

| Breite | 4.3 mm | |
| ESR (Äquivalenter Serienwiderstand) | 120 Ω | |
| Frequenz | 4 MHz | |
| Frequenzstabilität | +/-50 | |
| Höhe | 3.5 mm | |
| Länge | 10.7 mm | |
| Lastkapazität | 18 pF | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Toleranz | ±30 ppm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85416000 |
| Originalverpackung | Bulk mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
