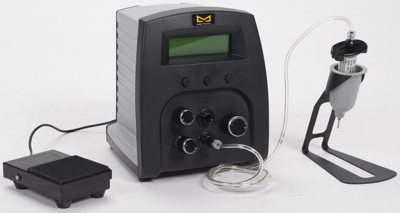

Dosing system, DX-355, METCAL

The dosing system DX-355 offers the possibility of saving up to 10 dispensing profiles. Time, pressure, and adjustable vacuum suction are displayed digitally. The device is intuitive to use and offers a high level of accuracy for line or point dispensing. An infinite vacuum suction back prevents low-viscosity media from dripping between the dosing cycles and high-viscosity media from pulling threads. The set value is displayed digitally. An RS-232 interface enables connection to a PLC. The system is delivered and ready for operation. The working pressure is adjustable via a precision valve from 0 to 1 bar for low-viscosity media.

Features

• Small footprint and lightweight
• 10 programmable dispense routines and 4 operating modes
• Digital timer, pressure and vacuum read-outs
• Accurate reproduction of sequences of beads or dots
• Adjustable vacuum suck back feature for controlling drips of fluid between dispense cycles

Ordering information

• Foot switch
• Power supply
• 10cc Receiver Head Kit
• Mounting brackets
• Receiver Head Air Hose Holder
• Syringe Barrel Stand
