MX-500-RNKIT | METCAL

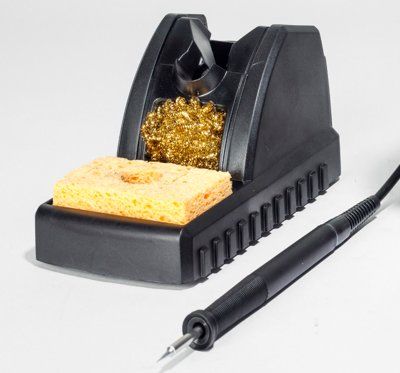

Soldering iron kit MX Series, METCAL MX-500-RNKIT, 40 W, 240 V
Unit Price (€ / pc.)
221.34 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Soldering system, MX-500-RNKIT, Metcal
The system utilizes SmartHeat Technology, where each cartridge is equipped with a self-regulating heater which ‘senses’ its own temperature and closely maintains its preset idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. The MX-500 retains switchable dual port and 40W SmartHeat -Power
Features
- A built in net power which will display a graphical and numerical representation of the power applied to the cartridge
- User programmable power save
- AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system
- Automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance
- Full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories
Ordering information
- Automated solder wire feeder
- Power Supply
- Power connection
Technical specifications
| Version | Soldering iron kit | |
| Input voltage | 240 V | |
| Suitable for | MX-500 | |
| Power | 40 W | |
| Soldering tip series | MX | |
| max. operating temperature | 40 °C | |
| min. operating temperature | 10 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85159080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
