CCV-BL350 | METCAL
Soldering tip, blade shape, (L x W) 9.1 x 35 mm, 450 °C, CCV-BL350
Unit Price (€ / pc.)
85.0850 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

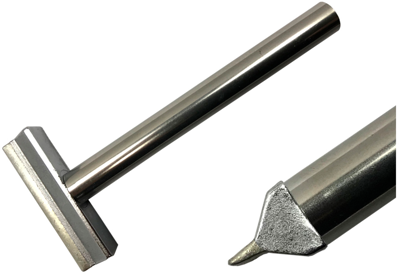

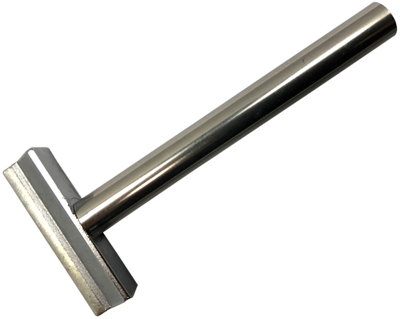

Solder blades, CCV-BL350, Metcal
CxV-Solder Blades are part of the rework soldering tips for the Metcal PS-900/MFR-1120, MFR-2220-series soldering systems. The second letter of the part number designates the temperature series. The CFV temperature series is nominally 390 ˚C. Metcal recommends the CFV temperature series for most applications. However, there is a higher temperature range designated CCV, nominally 450 ˚C, for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
Technical specifications
| Ausführung | Lötspitze | |
| Breite | 35 mm | |
| Geeignet für | MFR-H2-ST | |
| Länge | 9.1 mm | |
| max. Temperatur | 450 °C | |
| Spitzentyp | Klingenform |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85151990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
