CVC-9CH0035P | METCAL

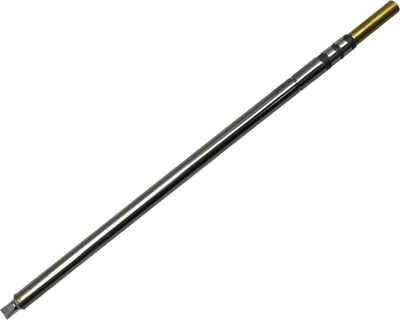

Name: Soldering tip, Chisel shaped, (L x W) 6.1 x 3.5 mm, 510 °C, CVC-9CH0035P
Brand: METCAL
SKU: 12L7655
Price: 38.44 EUR
Availability: OutOfStock

Soldering tip, Chisel shaped, (L x W) 6.1 x 3.5 mm, 510 °C, CVC-9CH0035P

Order No.: 12L7655

EAN: 1220000000000

MPN:

CVC-9CH0035P

Series: CV

Image may differ

Key Specification:

Version soldering tip

Peak type Chisel shaped

Suitable for CV-5200, CV-500, MX-5200, MX-500

Show 26 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

38.437 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

38.44 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Technical specifications

	Version	soldering tip
	Width	3.5 mm
	Suitable for	CV-5200, CV-500, MX-5200, MX-500
	Length	6.1 mm
	max. operating temperature	510 °C
	Peak type	Chisel shaped

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	US
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
