SSC-737A | METCAL

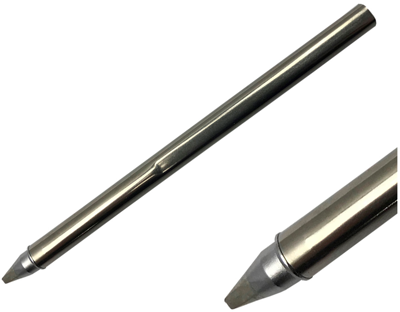

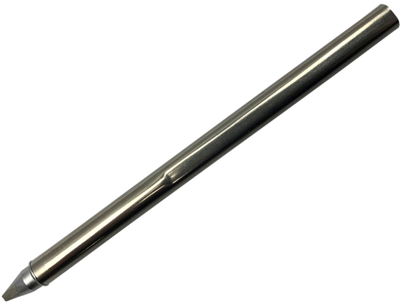

Soldering tip, Chisel shaped, (L x W) 9.9 x 1.78 mm, 390 °C, SSC-737A

Order No.: 03L5874
EAN: 4099891395735
MPN:
SSC-737A
Series: SSC
METCAL
SSC-737A METCAL Soldering tips, desoldering tips and hot air nozzles Image 1
SSC-737A METCAL Soldering tips, desoldering tips and hot air nozzles Image 2
SSC-737A METCAL Soldering tips, desoldering tips and hot air nozzles Image 3
Image may differ
Unit Price (€ / pc.)
23.919 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
23.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
23.919 €

Soldering Cartridge, SSC-737A, METCAL

Soldering Cartridge, Chisel 1.78 mm, 30°

The SSC-737A is the standard soldering tip, it can be used with leaded and lead-free solder. It automatically adjusts power levels during each soldering operation.

Technical specifications
Version soldering tip
Width 1.78 mm
Suitable for SP-200, MFR-1160, solder pen SP-HC1, MFR-H6-SSC
Length 9.9 mm
max. operating temperature 390 °C
Peak type Chisel shaped
Logistics
Country of origin US
Customs tariff number 85159080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
